VPL Vertical Platform Lifts Are Wheelchair Elevators for Mobile Home Access
A vertical platform lift (VPL) carries a wheelchair, power chair, scooter, or mobility user vertically between levels. For a mobile-home porch, deck, or entry, a VPL can provide a compact alternative when a long accessibility ramp would consume too much space. The right lift depends on measured rise, platform size, landing arrangement, weather exposure, electrical service, local code requirements, and the combined weight of the rider and mobility device.
Mac’s PL-50 Vertical Home Lift for Mobile Home Porches
Mac’s PL-50 is a residential vertical platform lift designed for everyday indoor or outdoor access. Manufacturer literature describes a 750-pound maximum capacity, a low platform for easier roll-on/roll-off access, non-slip surfaces, constant-pressure controls, safety ramp/barrier, rolled-edge railings, and household-current operation. It is a practical configuration to consider for many lower mobile-home porch elevations.
Mac’s PL-72 Vertical Platform Wheelchair Lift
The Mac’s PL-72 extends the PL-series concept to approximately six feet of lifting height. It is intended for situations where a porch or landing is higher than the range served by a shorter lift. Before ordering, verify the exact floor-to-floor rise, upper landing construction, approach direction, platform clearance, gates, and required permits.
Mac’s PL-90 Vertical Platform Lift
The Mac’s PL-90 is another PL-series configuration for greater vertical travel. A higher-rise VPL requires especially careful attention to landing protection, gates, structural attachment, clearances, and applicable code. A site evaluation should determine whether straight-through entry/exit or an alternate exit arrangement is best.
Mac’s PL-Series 90-Degree Exit Platform Option
For porches where the wheelchair cannot conveniently roll straight through, Mac’s literature identifies an optional 90-degree exit platform configuration for PL-series lifts. This can be useful where stairs, rails, walls, carports, property lines, or porch geometry restrict the approach path.
Mac’s EVL-107 Extended Vertical Lift
Mac’s EVL-107 is part of the company’s extended vertical lift family for applications requiring more travel than the standard PL-series. Mac’s describes its extended lifts as indoor/outdoor units with a 750-pound capacity and the same general emphasis on non-slip platforms, constant-pressure controls, safety barriers, weather-resistant construction, and household power.
Mac’s EVL-121 and Higher Extended Vertical Lifts
Mac’s also identifies EVL-121 and taller extended-lift configurations. These are intended for unusually high access points where a conventional porch lift is not tall enough. Higher travel can change enclosure, gate, structural, and inspection requirements, so the installation must be designed around the actual site and governing local code.
Mac’s PSL-50 Portable Stage / Platform Lift
The Mac’s PSL-50 is a portable platform-lift product intended for temporary or stage-type access rather than a typical permanent mobile-home porch installation. Mac’s lists a 750-pound capacity, indoor/outdoor capability, manual emergency hand crank, and AC or DC power availability. For permanent residential access, compare it with the PL and EVL families.

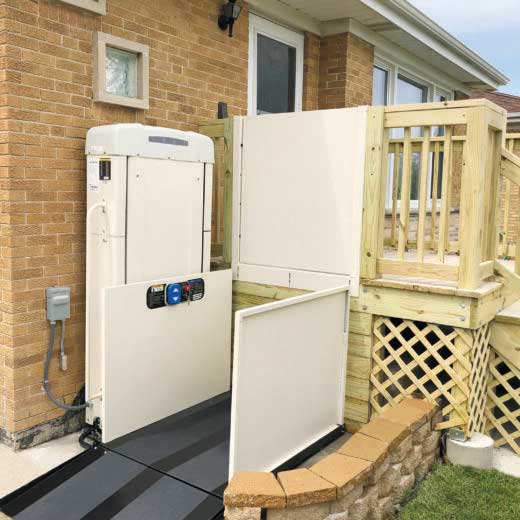

Harmar Highlander II Vertical Platform Lift
Harmar’s Highlander II is a 750-pound-capacity VPL family for residential and commercial use. Current manufacturer specifications list platform choices and lifting heights from the VPL400 through VPL1400 configurations, reaching from shorter porch applications to substantially higher landings. Safety equipment includes a platform safety pan, emergency stop, overspeed brake, door/gate interlocks, and manual lowering provisions.
Harmar Highlander II VPL400, VPL600 and VPL800
The Highlander II family includes VPL400, VPL600, and VPL800 configurations for progressively greater lifting heights. Harmar currently lists maximum travel of about 53, 77, and 101 inches respectively. These sizes cover many porch, deck, garage-entry, and elevated mobile-home access conditions.
Harmar Highlander II VPL1000, VPL1200 and VPL1400
For taller applications, Harmar lists VPL1000, VPL1200, and VPL1400 configurations with maximum lifting heights of approximately 125, 149, and 171 inches. These higher-rise installations can require additional landing protection or enclosure provisions and should be planned by a qualified installer.
Harmar VPL400-X Platform Lift
The Harmar VPL400-X is designed as a simpler residential platform lift for travel up to 53 inches while retaining a 750-pound lifting capacity. Harmar positions it for decks, porches, and garage entries. Available options include platform gates, grab bars, and key controls, depending on the installation.
Harmar VPLX-DC Platform Lift
Harmar also lists the VPLX-DC in its current vertical-platform-lift lineup. It is aimed at shorter residential access applications such as porches, decks, and garage entries. Ask the installer to compare power configuration, backup operation, platform dimensions, gates, and service requirements with the VPL400-X and Highlander II.
Harmar Highlander II With Enclosure Kit
An enclosure can protect the lift travel path and may be required by code in some applications. Harmar offers an enclosure kit compatible with Highlander II configurations up to 14 feet. The manufacturer notes commercial requirements for enclosures at certain heights; residential requirements vary by jurisdiction, so local rules must be checked before installation.
Bruno VPL-3100 Series Vertical Platform Lift
Bruno’s VPL-3100 series is designed to provide vertical access for wheelchair and scooter users at porches, decks, and other elevation changes. Bruno engineering documentation identifies multiple configurations within the VPL-3100/VPL-3200B family. Correct model selection should be based on exact travel, platform orientation, landing gate needs, power requirements, and local code.
Bruno VPL-3200B Series Vertical Platform Lift
The Bruno VPL-3200B series is another current engineering family shown in Bruno’s VPL documentation. For a mobile-home porch, the important buying questions are usable platform size, clear approach space, required rise, ramp orientation, upper landing protection, weather exposure, and whether the site requires an enclosure or special gate arrangement.
How to Measure a Mobile Home Porch for a VPL Wheelchair Elevator
Measure from the finished lower surface to the finished upper landing, not merely the number of steps. Also measure the available footprint, wheelchair turning space, gate swing, porch width, roof or awning clearance, and the path from parking or sidewalk to the platform. Photographs and exact measurements help determine the safest configuration.
VPL Versus a Long Wheelchair Ramp for Mobile Home Access
A VPL can be especially useful when there is not enough property length for a code-compliant ramp. Harmar notes that ramps can require substantial run for relatively modest rise. A platform lift uses a more compact footprint, but it adds mechanical equipment, electrical needs, maintenance, and code requirements that should be considered in the total project.
Safety Features to Compare Before Buying a Wheelchair Elevator
Compare constant-pressure controls, emergency stop, under-platform obstruction protection, automatic or fixed access ramps, gate interlocks, overspeed protection, manual lowering, non-slip surfaces, handrails, key controls, battery backup, and weather-resistant finishes. Never select a lift on price alone; the installation and landing protection are part of the safety system.
Buying a Used VPL Vertical Platform Wheelchair Lift
A properly selected used VPL can reduce equipment cost, but the lift must still match the site. Confirm model and serial number, rated capacity, maximum travel, platform dimensions, entry/exit direction, condition of drive and controls, availability of replacement parts, and compatibility with current installation requirements. Used equipment should be inspected, refurbished as needed, and professionally installed.
Renting a VPL Wheelchair Lift for Temporary Mobile Home Access
Rental can make sense for temporary recovery, visiting family, short-term housing, or when you want accessibility without immediately purchasing equipment. The site still needs to be suitable for safe installation. Ask about minimum rental term, delivery, installation, removal, service responsibility, permits, and whether the selected unit can safely meet the required rise.
How to Choose Between Mac’s, Harmar and Bruno VPL Wheelchair Lifts
Start with the site rather than the brand. Determine exact rise, total load, platform size, approach direction, indoor/outdoor exposure, electrical service, gate and enclosure requirements, and local inspection rules. Then compare models that actually fit those requirements. Professional measurement can prevent ordering a lift that is too short, too large, or incompatible with the porch.
Professional Installation and Local Code Requirements
Vertical platform lifts are accessibility equipment with moving platforms, gates, electrical components, and structural interfaces. Requirements vary by state and locality. A qualified installer should verify applicable building, electrical, accessibility, and lift codes, obtain permits where required, and confirm the upper landing and lower pad are suitable before the lift is placed into service.
